Open-frame diesel generator set-250kw

Description

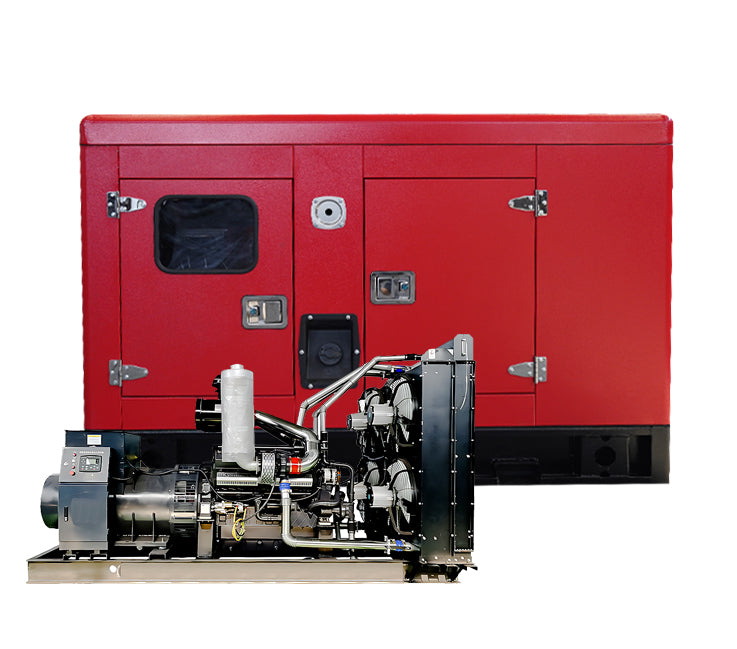

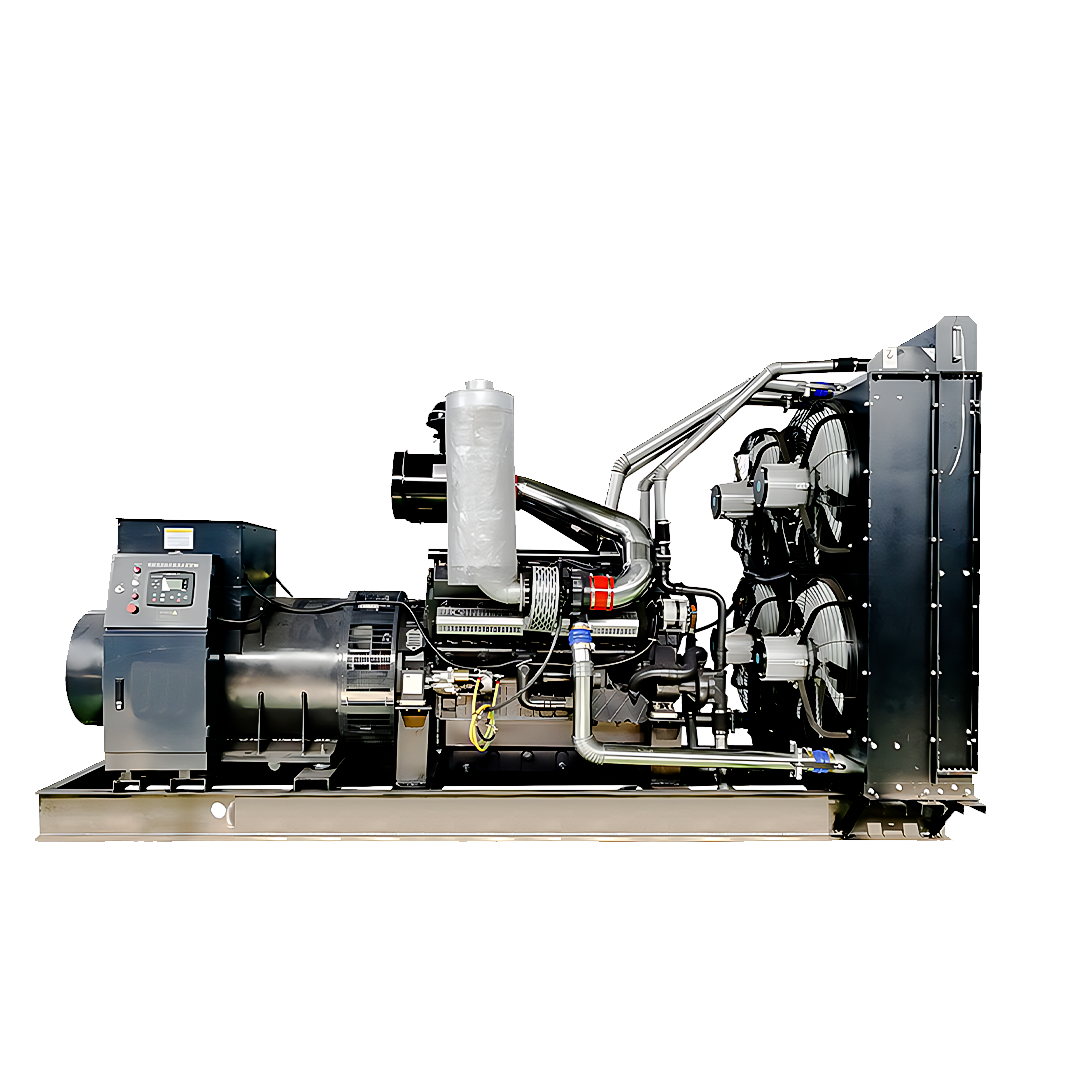

Open-frame diesel generator set – 250kW, is a high-capacity, industrial-grade power solution engineered for consistent performance in demanding environments. With an open-frame structure for optimal airflow and maintenance access, this generator is ideal for factories, construction sites, and emergency backup systems.

At its core, the unit features a Weifang 6126IZLD turbocharged diesel engine, delivering 250kW of continuous power output at 400V/230V, with a rated current of 450A. The engine operates at 1500 rpm, utilizing direct injection, DC24V electric start, and a closed-loop water cooling system to ensure stable, fuel-efficient operation with a fuel consumption rate of 248g/kWh under full load.

🔍 Key Specifications:

• ✅ Rated Power: 250kW

• ✅ Output Voltage: 400V/230V | Rated Current: 450A | Frequency: 50Hz

• ✅ Engine: Weifang 6126IZLD | Engine Power: 250kW

• ✅ Cylinders: 6 | Bore × Stroke: 126 × 140 mm | Compression Ratio: 16.0:1

• ✅ Speed: 1500 rpm | Air Intake: Turbocharged

• ✅ Fuel System: Direct injection | Start Method: DC24V electric

• ✅ Cooling Method: Closed water circulation

• ✅ Fuel Consumption: 248g/kWh | Oil Consumption: <1.9g/kWh

• ✅ Noise Level: ≤95 dB(A) @ 7m

• ✅ Dimensions (L×W×H): 3000 × 900 × 2100 mm | Net Weight: 2200 kg

• ✅ Alternator: Yuanyu Power | Power Factor: 0.8 | Wiring: 3-phase 4-wire

• ✅ Voltage Regulation: ≤±1% | Frequency Stability: ≤0.5%

• ✅ Waveform Distortion: ≤5% | Fast Load Recovery: Voltage ≤2s, Frequency ≤3s

This 250kW open-frame diesel generator offers strong, steady performance with low fuel consumption and high efficiency, making it an excellent choice for industries needing continuous or standby power. Whether for primary power supply or emergency backup, reliable solution.
