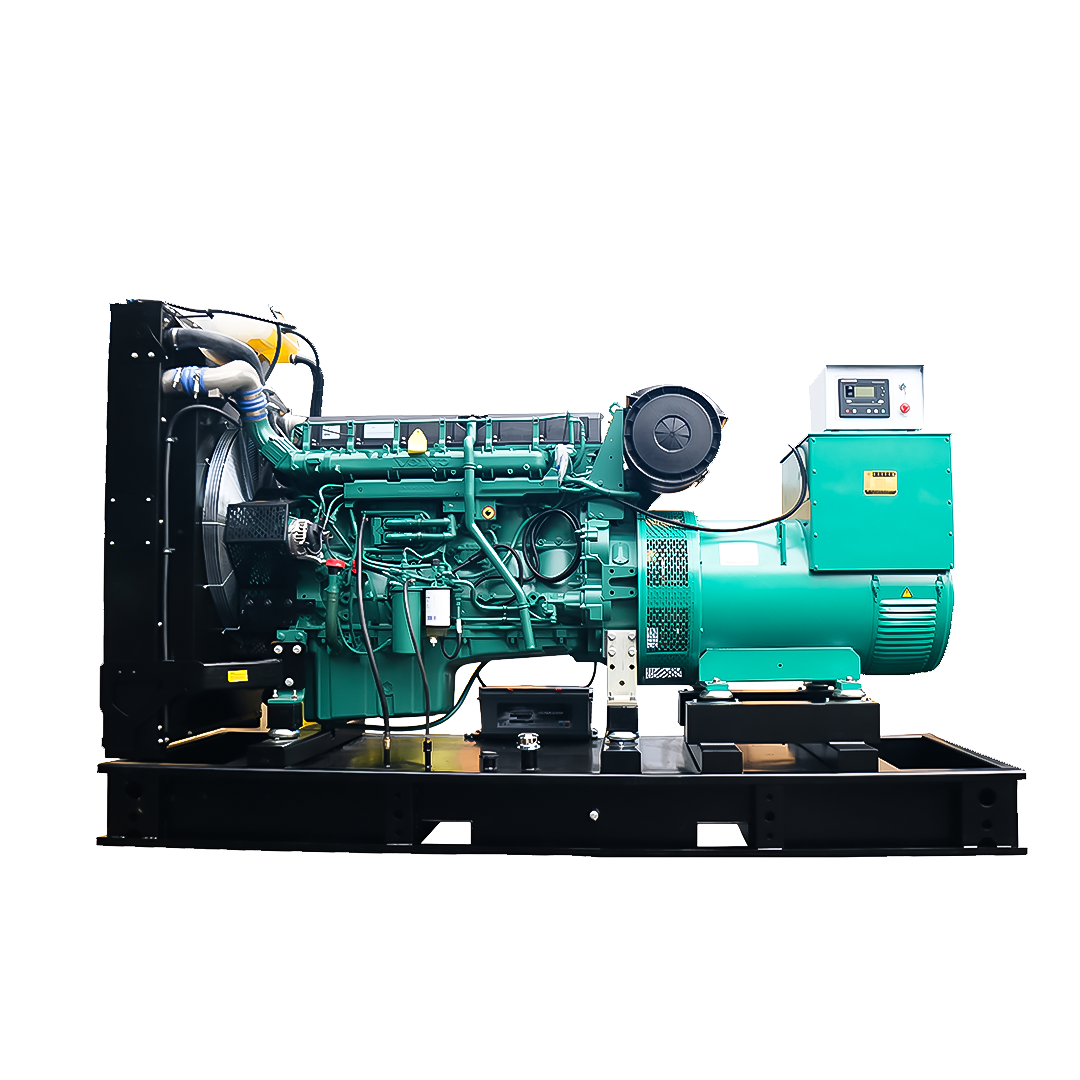

Open-frame diesel generator set-200kw

Description

Open-frame diesel generator set – 200kW, model YYDL200GF, is built to deliver powerful, stable, and continuous energy for heavy-duty industrial, commercial, and backup applications. Its open-frame design ensures effective ventilation, easy maintenance, and durable field performance.

Powered by the Weifang 6126ZLD turbocharged diesel engine, this generator provides 200kW of continuous output at 400V/230V with a current of 360A. Featuring direct injection, a DC24V electric starting system, and a closed water circulation cooling system, this unit ensures reliable startup, smooth operation, and fuel-efficient performance at just 248g/kWh.

🔍 Key Specifications:

• ✅ Model: YYDL200GF | Rated Power: 200kW

• ✅ Output Voltage: 400V/230V | Current: 360A | Frequency: 50Hz

• ✅ Engine: Weifang 6126ZLD | Engine Power: 200kW

• ✅ Cylinders: 6 | Bore × Stroke: 126 × 130 mm | Compression Ratio: 16.0:1

• ✅ Speed: 1500 RPM | Air Intake: Turbocharged

• ✅ Fuel System: Direct Injection | Starting Method: DC24V Electric

• ✅ Cooling: Closed Water Circulation

• ✅ Fuel Consumption: 248g/kWh @ 100% Load | Oil Consumption: <1.9g/kWh

• ✅ Noise Level: ≤95 dB(A) @ 7m

• ✅ Dimensions (L×W×H): 2800 × 800 × 1800 mm | Net Weight: 2200 kg

• ✅ Alternator: Yuanyu Power | Power Factor: 0.8 | Connection: 3-phase, 4-wire

• ✅ Voltage Regulation: ≤±1% | Frequency Stability: ≤0.5%

• ✅ Waveform Distortion: ≤5% | Fast Load Recovery: Voltage ≤2s, Frequency ≤3s

This 200kW open-frame diesel generator set is a high-capacity solution for continuous or emergency power needs, offering the durability and performance required for critical operations.

Whether you need a 200kW industrial generator, a backup diesel genset, or a heavy-duty open-frame solution, the YYDL200GF is engineered to deliver reliable, high-efficiency power whenever you need it.
